Description
Featuring the legendary SM58® Cardioid Dynamic Microphone capsule on top of the SLXD2 handheld wireless transmitter, the SLXD24/58 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.

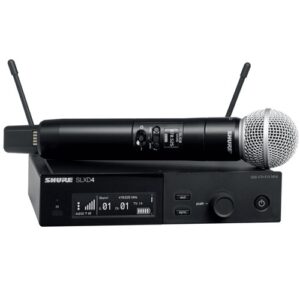

The SLXD24/SM58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver and SLXD2/SM58 handheld transmitter with antenna and rackmount accessories and 2 AA batteries.
FEATURES:

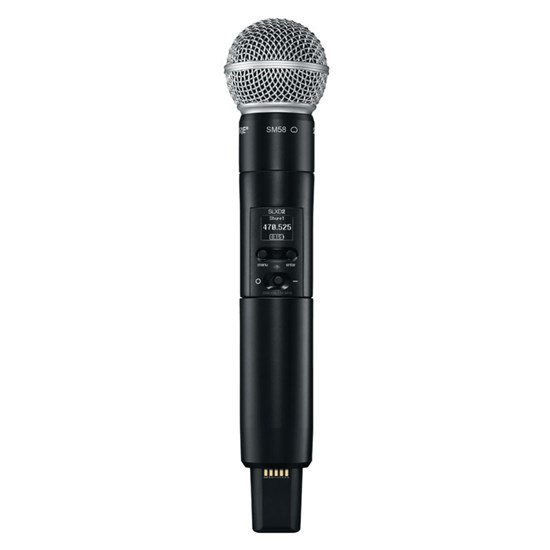

SLXD2/SM58 Handheld Transmitter:
- Transparent 24-bit digital audio
- 120 dB dynamic range
- Digital predictive switching diversity
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- TQG connectivity offers a variety of microphone options
- Ergonomic, durable plastic construction
- Frequency: H57 Band

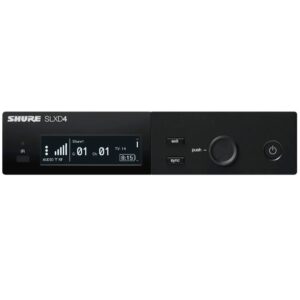

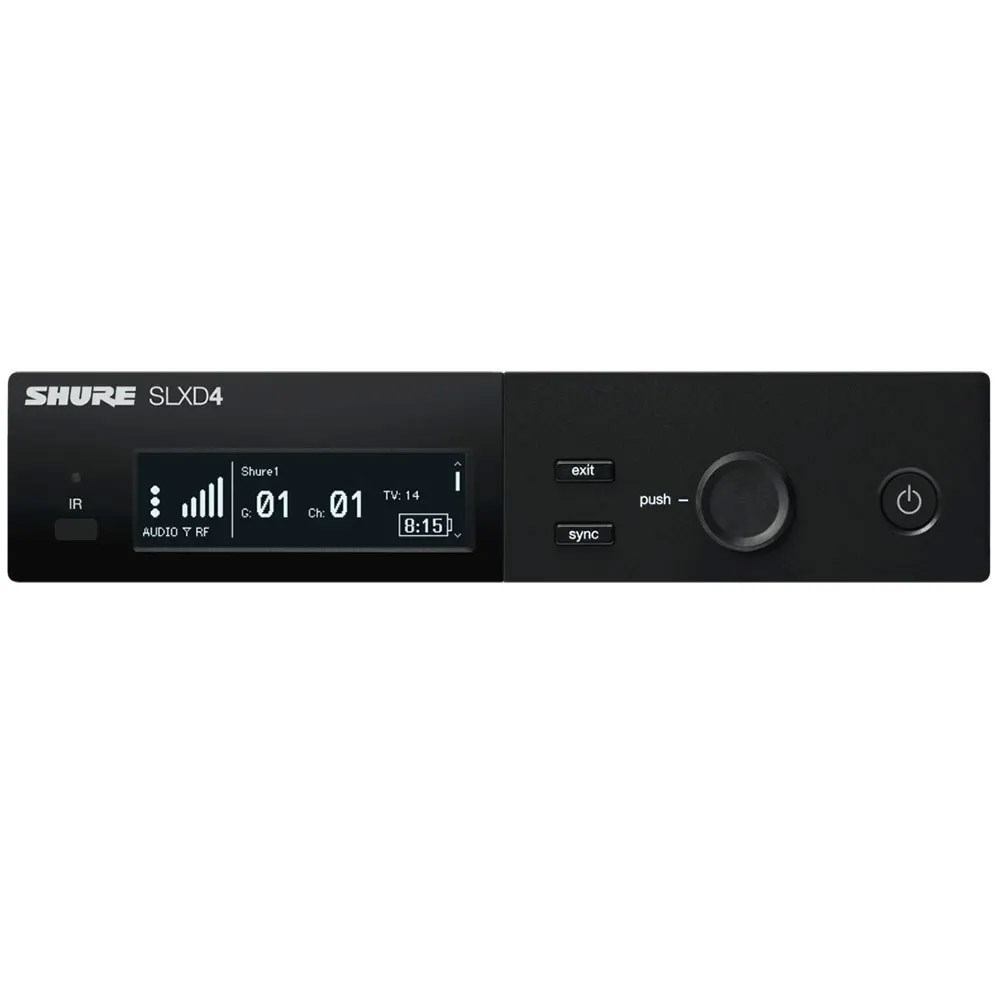

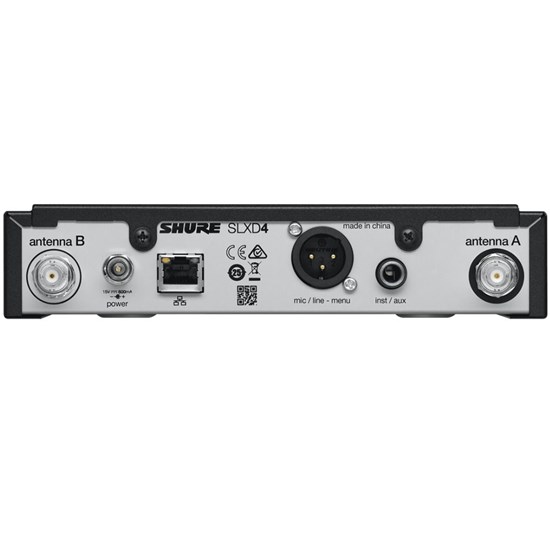

SLXD4 Digital Wireless Receiver:
- Transparent 24-bit digital audio
- 120 dB dynamic range
- Digital predictive switching diversity
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Rugged metal construction
SYSTEM SPECIFICATIONS (SUBJECT TO CHANGE)
RF
RF Carrier Frequency Range: 470–937.5 MHz
Varies by Region. See Frequency Range and Output Power Table.
Working Range: 100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size:
JB Band: 125 kHz
All Other Bands: 25 kHz
Varies by region.
Image Rejection: >70 dB typical
RF Sensitivity: −97 dBm at 10-5 BER
AUDIO
Latency: 3.2 ms
High-Pass/Low Cut Filter: 150 Hz, –12 dB/octave
Note: factory default is for the HPF to be off
Audio Frequency Response: 20 Hz–20 kHz (+1, −2 dB)
Audio Dynamic Range:
A-weighted, 20 Hz–20 kHz, typical
118 dB
@1% THD
Total Harmonic Distortion: <0.02%
System Audio Polarity:
XLR: Positive pressure on microphone diaphragm produces positive voltage on pin
2 with respect to pin 3 of XLR output.
TRS: Postive pressure on microphone diaphragm produces positive voltage on the
tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
Mic Offset Range 0 to 21 dB (in 3 dB steps)
TEMPERATURE RANGE Note: Battery characteristics may limit this range.
Operating Temperature Range: 0 °F to 122 °F (−18 °C to 50 °C)
Storage Temperature Range: −20 °F to 165 °F (−29 °C to 74 °C)
NOTE: This Radio equipment is intended for use in musical professional entertainment and similar applications. This Radio apparatus may be capable of
operating on some frequencies not authorized in your region. Please contact your national authority to obtain information on authorized frequencies and
RF power levels for wireless microphone products.
