Description

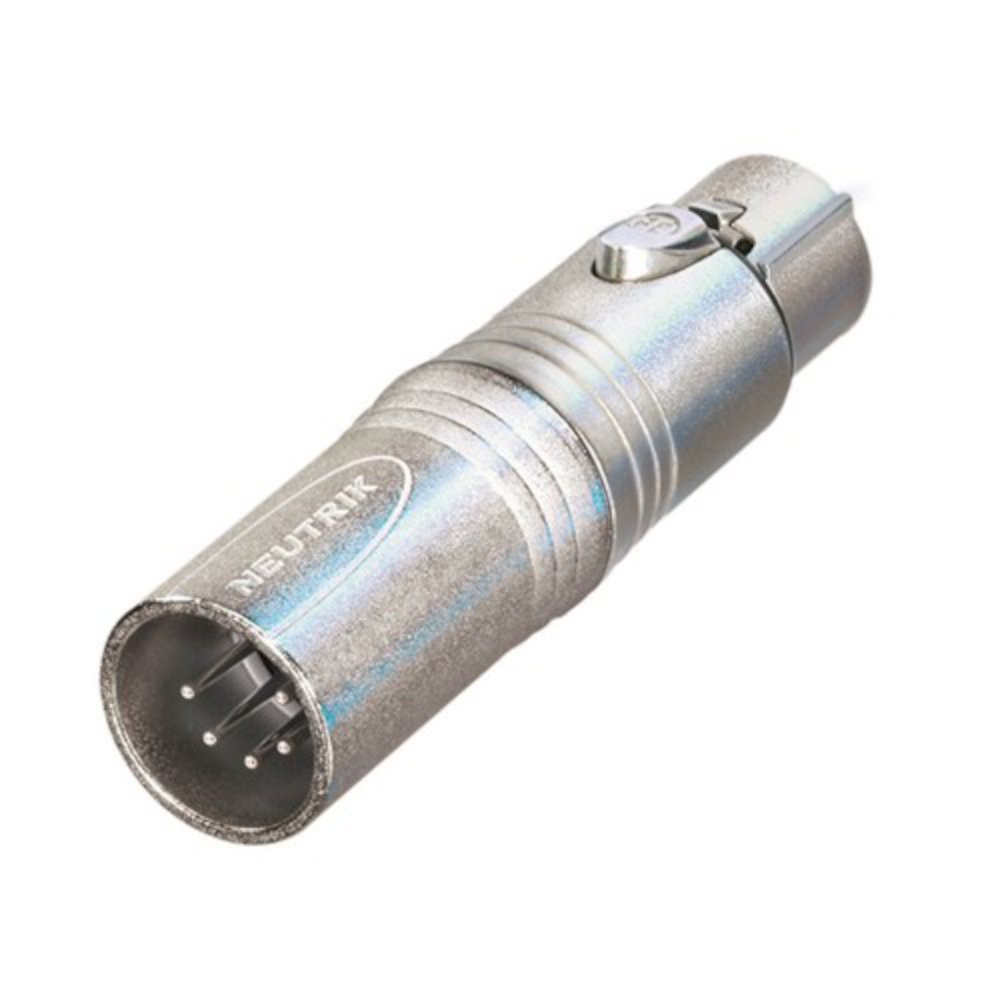

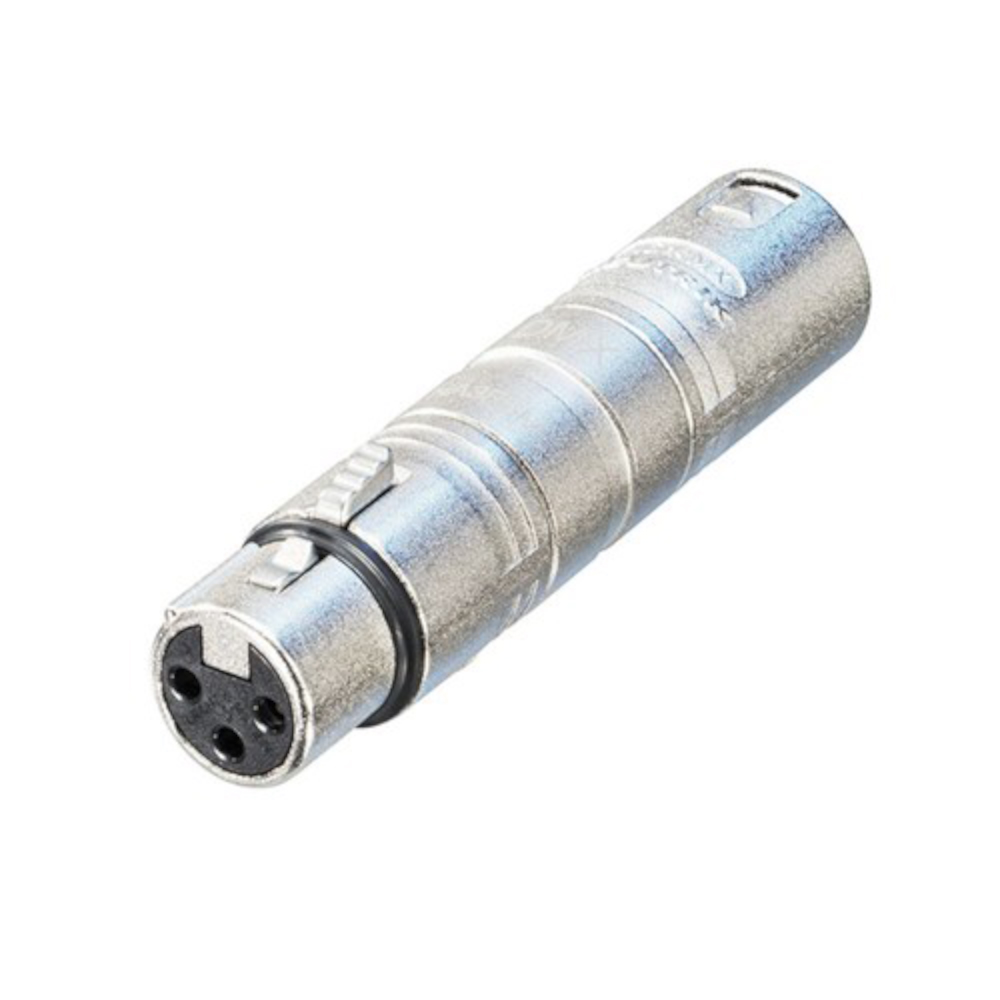

NA3F5M

3 pole XLR female – 5 pole XLR male for lighting (DMX) applications

Features & Benefits

Compact XLR 3 to 5 pole adapter for lighting (DMX) applications
Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard
Professional look and compact space saving design, based on the XX Series
Rugged diecast shell for best reliability

Product

Title

• NA3F5M

Connection Type

• Adapter

Electrical

Contact resistance

• ≤ 3 mΩ

Dielectric strength

• 1,5 kVdc

Insulation resistance

• > 2 GΩ

Rated current per contact

• 3 A

Mechanical

Insertion force

• < 20 N

Withdrawal force

• < 20 N

Lifetime

• > 1000 mating cycles

Locking device

• Latch lock

Material

Contact plating

• 2 µm Ag

Contacts

• Bronze (CuSn6) (female)

Insert

• Polyamide (PA 6.6 30 % GR)

Shell

• Zinc diecast (ZnAl4Cu1)

Shell plating

• Nickel

Environmental

Temperature range

• -30 °C to +80 °C
