Description
THESE ITEMS ARE AVAILABLE FOR ORDER. MODELS, SPECIFICATIONS AND RETAIL PRICES ARE BELOW
PLEASE CALL 07 3274 2530 OR EMAIL ([email protected]) FOR YOUR PRICE OR TO ORDER THIS PRODUCT

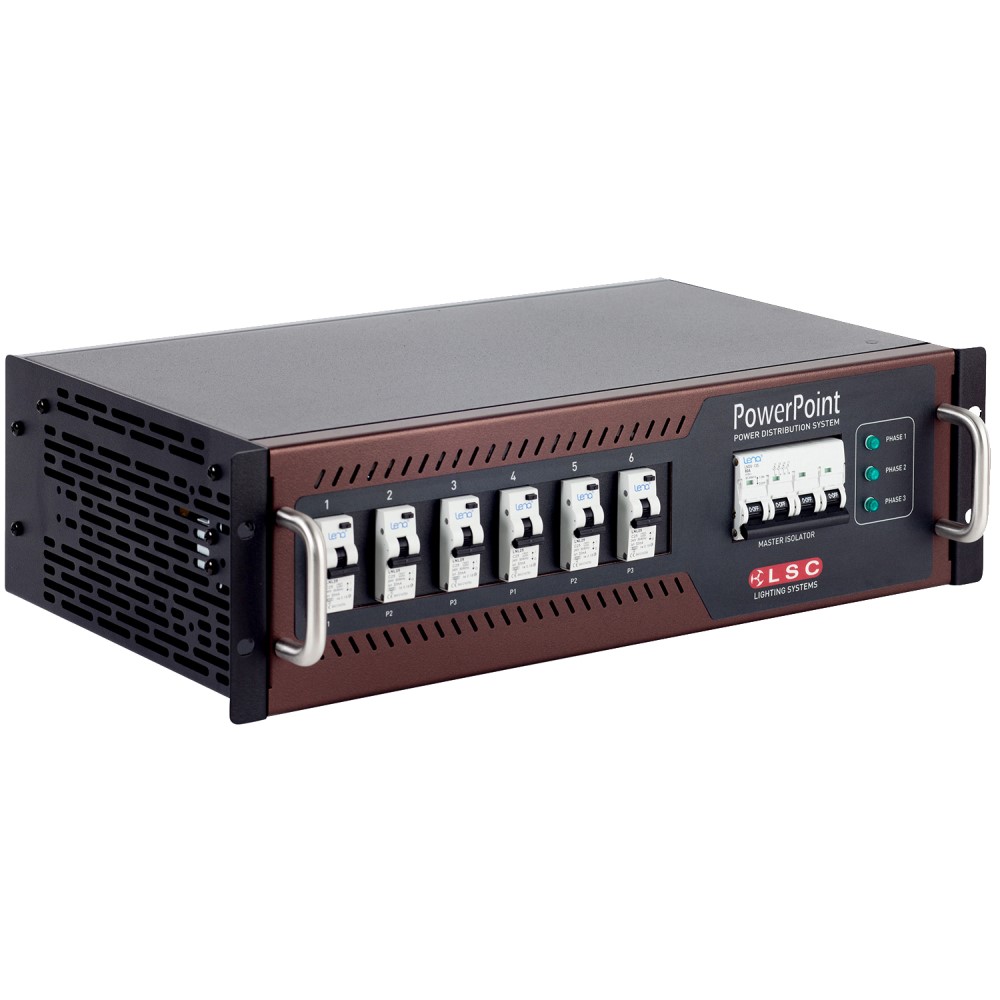

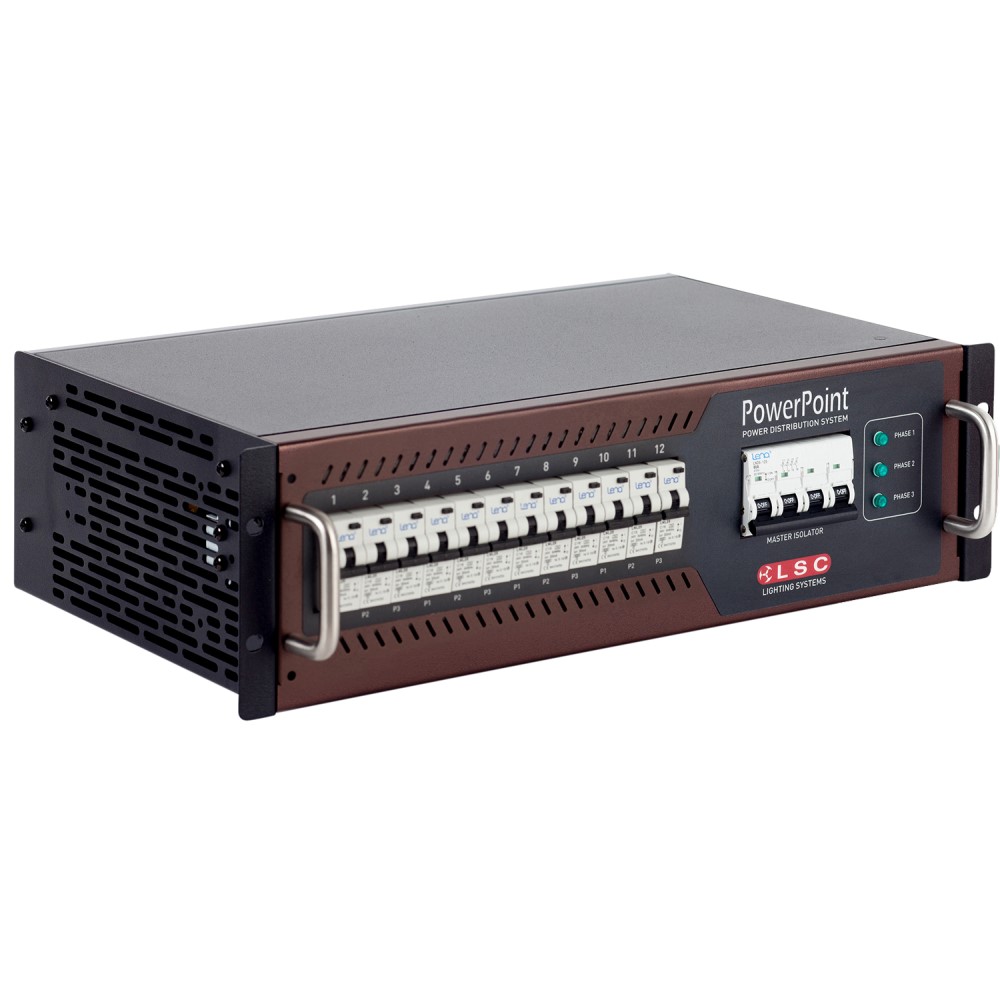

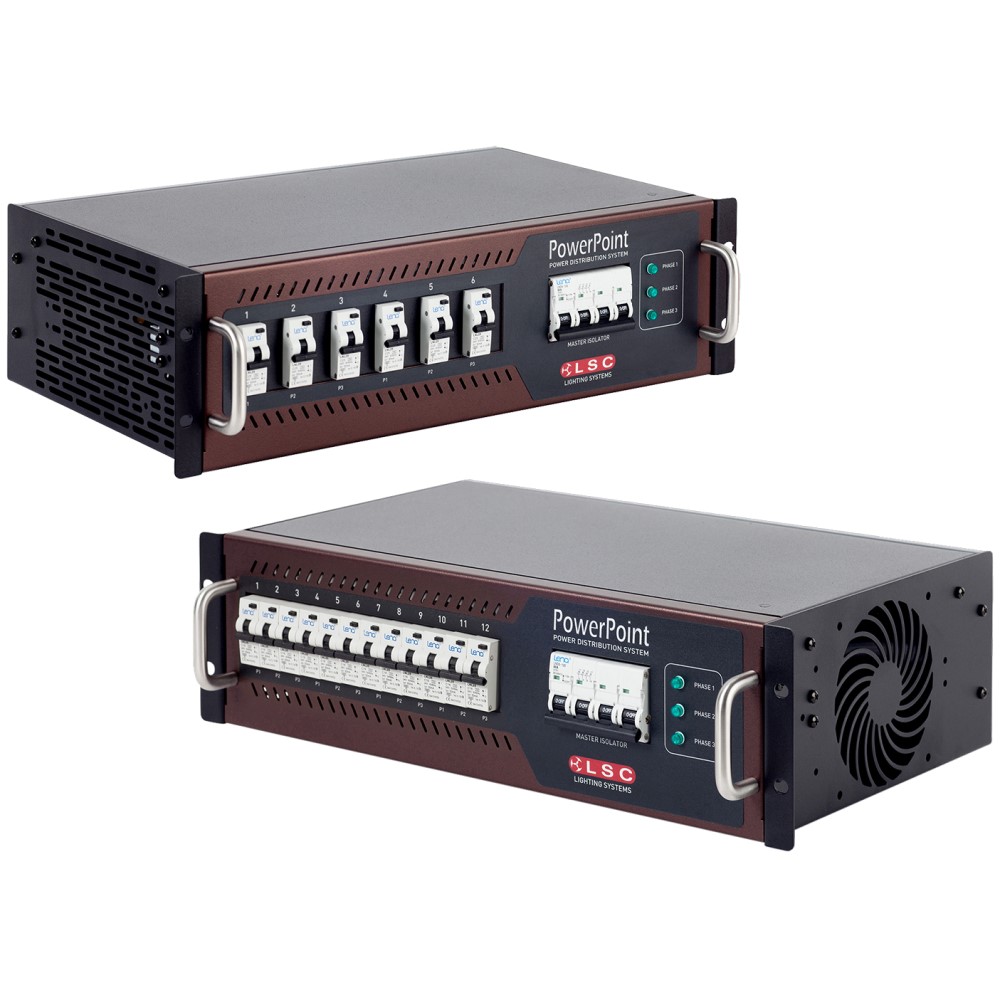

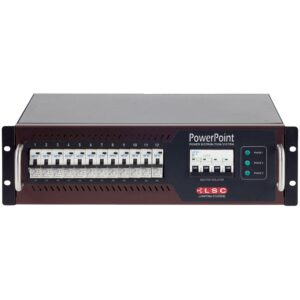

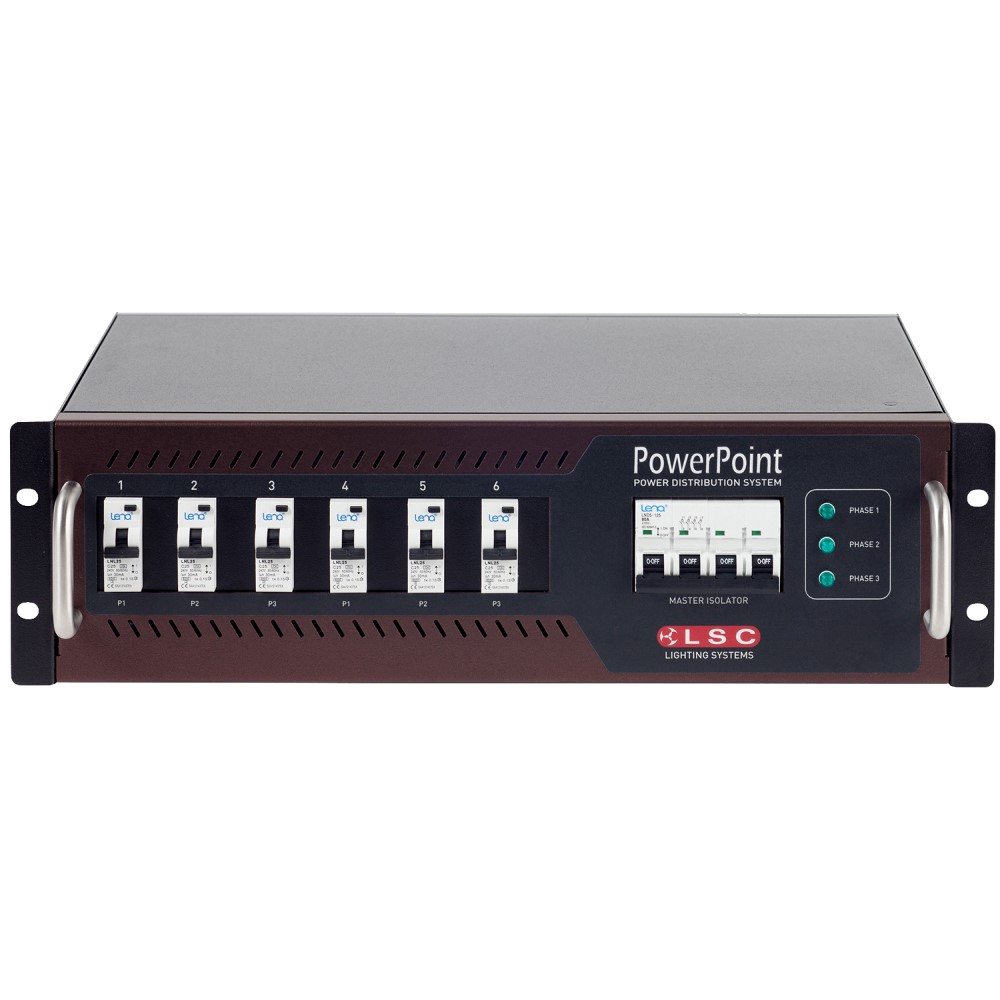

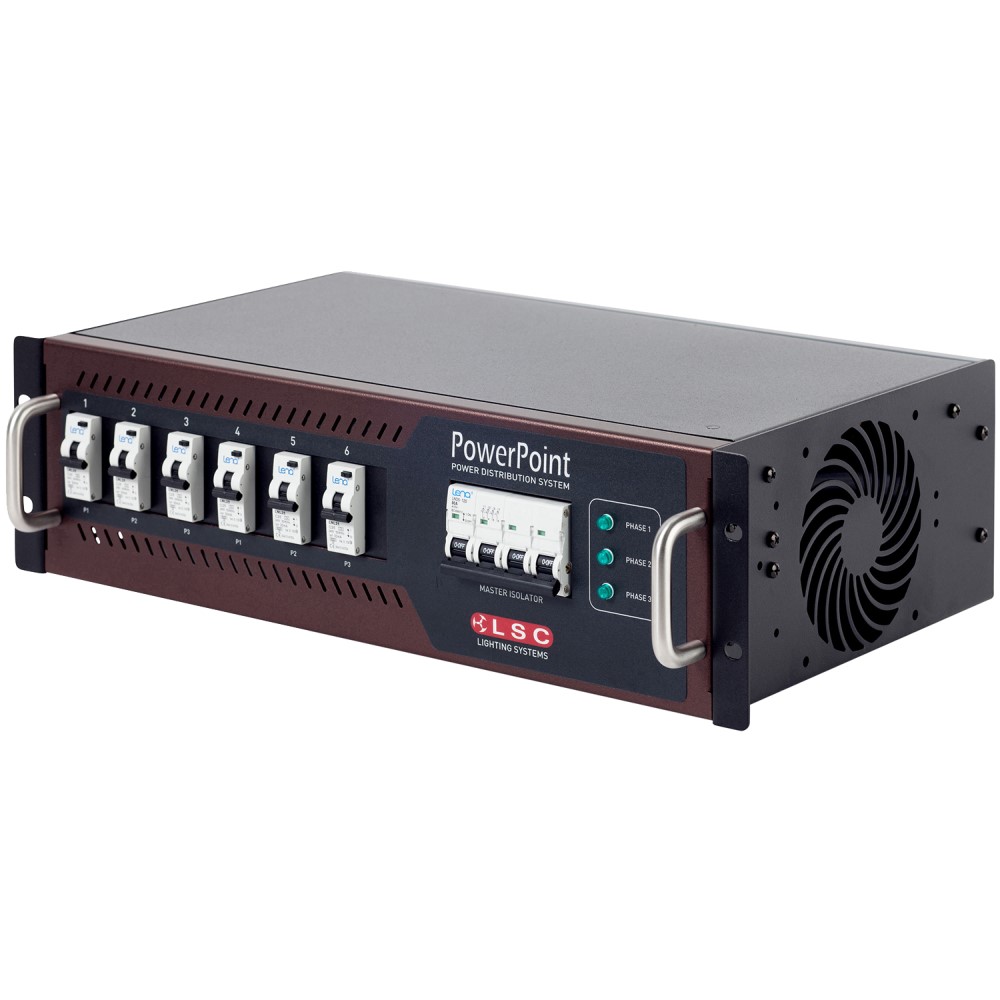

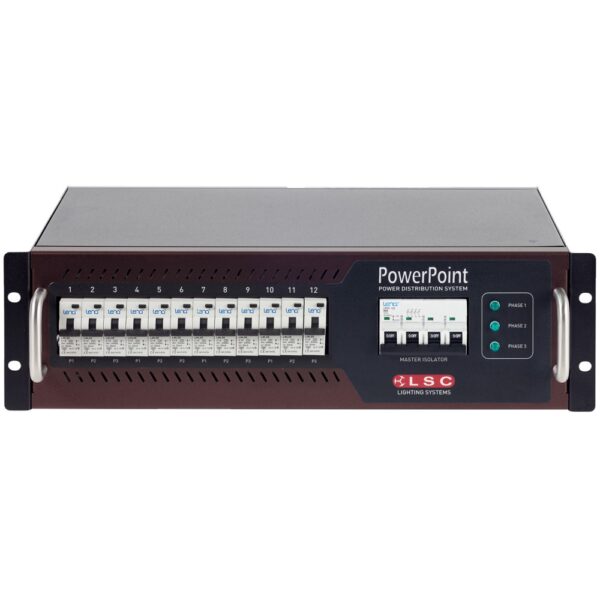

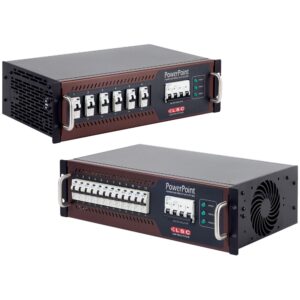

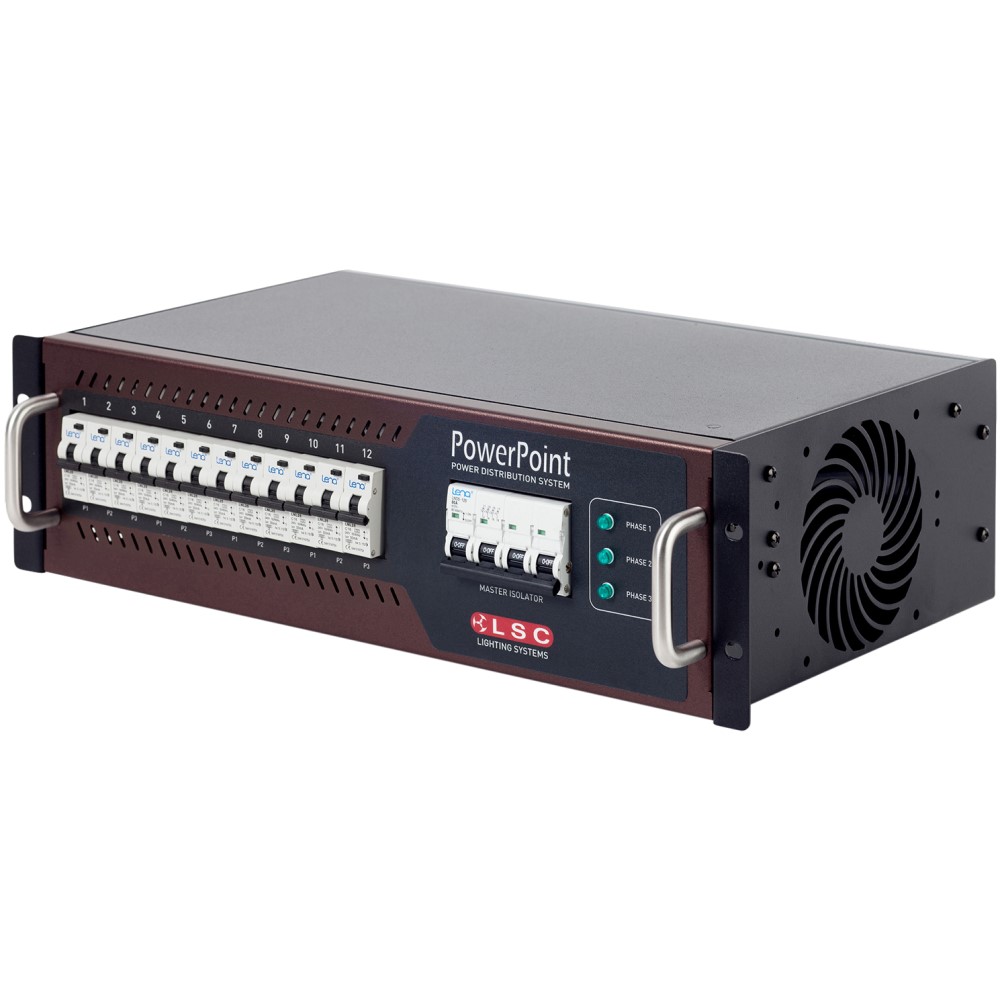

A show can’t function without power and power distribution has grown to be a major part of any event. LSC has introduced a number of sophisticated products recently to cater for the more demanding situations, however there are plenty of occasions when all that is needed is simple and reliable power distribution. The new LSC PowerPoint distro unit is exactly that – a simple to use 3-phase to single phase power distribution unit.
Designed for applications wherever fixed or mobile power distribution is required, the PowerPoint distribution rack offers the user a 4-pole mains input isolator switch with Neutral Disconnect as standard and individual RCBO (RCD+MCB) per output channel. There are also 3 neon phase indicators to show power input to the rack
SPECIFICATIONS:
Everything you need for reliable, affordable power distribution for your show!
The PowerPoint Feature list includes:
Twelve 10A three pin Australian output circuits;
Individual RCD (30mA) protection for each output circuit provides protection for users.
Individual Circuit Breaker for each output circuit;
Master Isolator switch that disconnects Neutral from output circuits as well;
Three neon indicators show state of phase power.
Three phase operation
| MODEL | CHANNELS | OUTPUTS | POWER IN | RRP PRICE |
| PWP12/10A | 12 | 12 x 240V 10A Outlets | 3 phase tail and plug | $1,645 |
| PWP12/10T | 12 | 12 x 240V 10A Outlets | Screw Terminals | $1,696 |
| PWP12/10W | 12 | 2 x Weiland Connectors | 3 phase tail and plug | $1,695 |
| PWP12/10X | 12 | 2 x 19Pin Socapex | 3 phase tail and plug | $1,695 |
| PWP12/10P | 12 | 12 x Powercon | 3 phase tail and plug | $1,695 |
| PWP12/10PT1 | 12 | 12 x Powercon True1 | 3 phase tail and plug | $1,795 |
| PWP12/16A/32 | 12 | 12 x 240v 20A outlets | 32A Master MCB on INPUT. 3 phase tail and 32A plug | $2,095 |
| PWP12/16A/40 | 12 | 12 x 240v 20A outlets | 40A Master MCB on INPUT. 3 Phase tail and 40A plug | $2,095 |
| PWP6/25A | 6 | 6 Paired 20A & 15A outlets | 3 phase tail and plug | $1,695 |
| PWP6/2ST | 6 | 6 x 25A Screw Terminals on Rear Panel | Screw terminals on Rear Panel | $1,695 |
| OPTIONS | ||||
| OP12/10A | 2RU output panel with 12 x 10A outlets on front and 1.2m Extension looms on the rear panel. | $565 | ||
