Description

Pass through panel mount connectors are fitted to patch panels with D-style holes for use in studios, live performance set ups and AV installations. Using the universal D-Cup sockets, any combination of panel mount connectors can be fitted into an empty panel. This allows a customisable patch panel solution for most studio, AV or live sound applications.

Used to easily connect cables, this adapter offers a time saving solution to patching, with no soldering required. The pass-through style allows direct connection in an easy and mess freeway. Perfect for network integration, IT and pro-audio environments.

Features:

• High quality connector
• D-Style housing for industry standard panels
• No soldering needed
• Mountable from front or rear of the panel
• TIA/EIA 568B and ISO/IEC11801 Standard
• Countersunk mounting holes

Specs:

• Mounting depth: 30mm
• Dimensions: 30 x 25 x 30mm (LxWxH)
• Weight: 0.021 kg
• Metal Chassis
• M3 bolt & nut required for install (Not supplied)
• Colour: Black

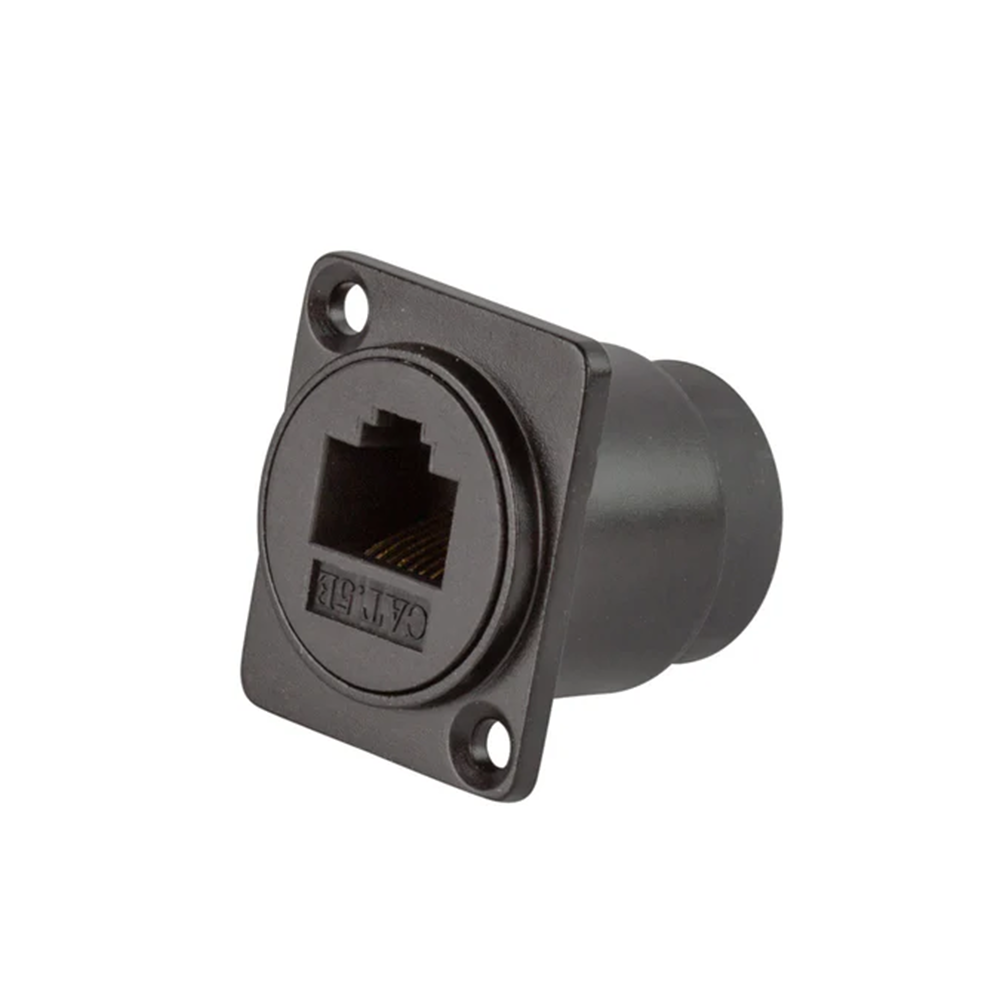

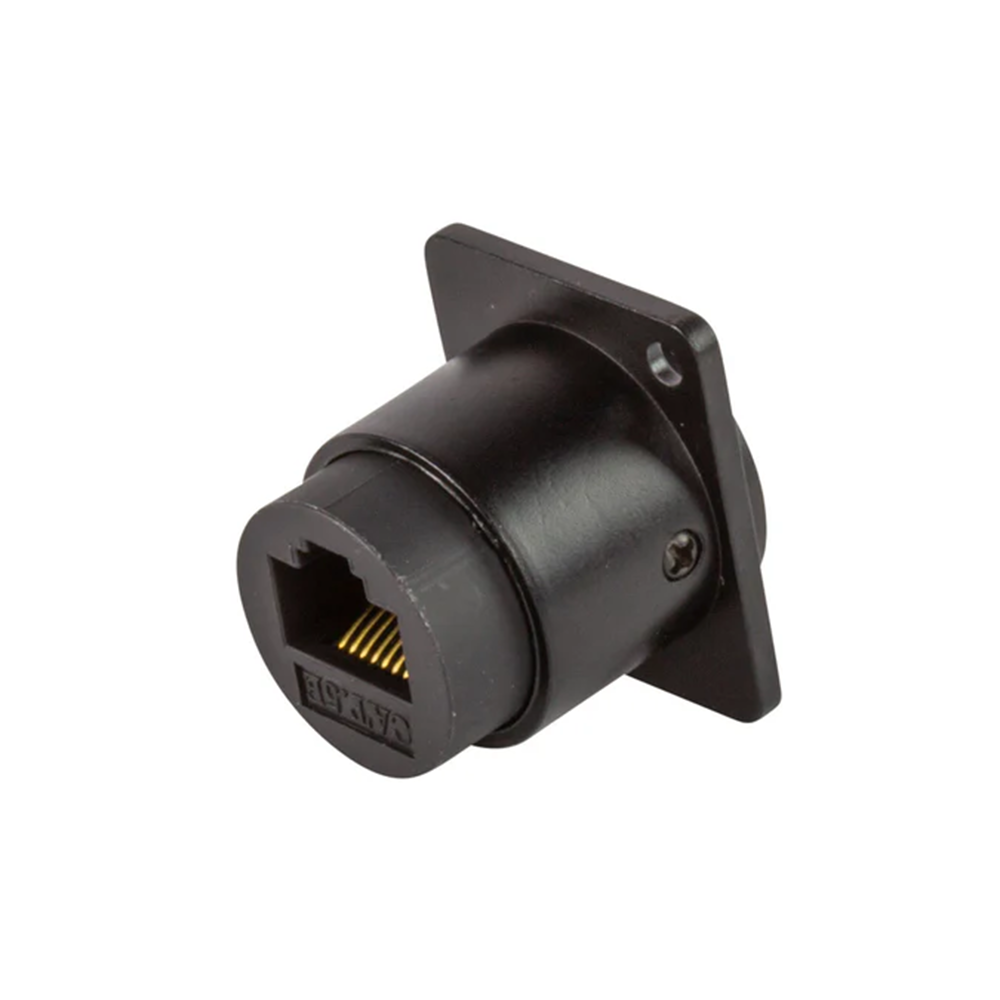

• 1 x Cat5e – Cat5e Pass Through Panel Mount
