Description

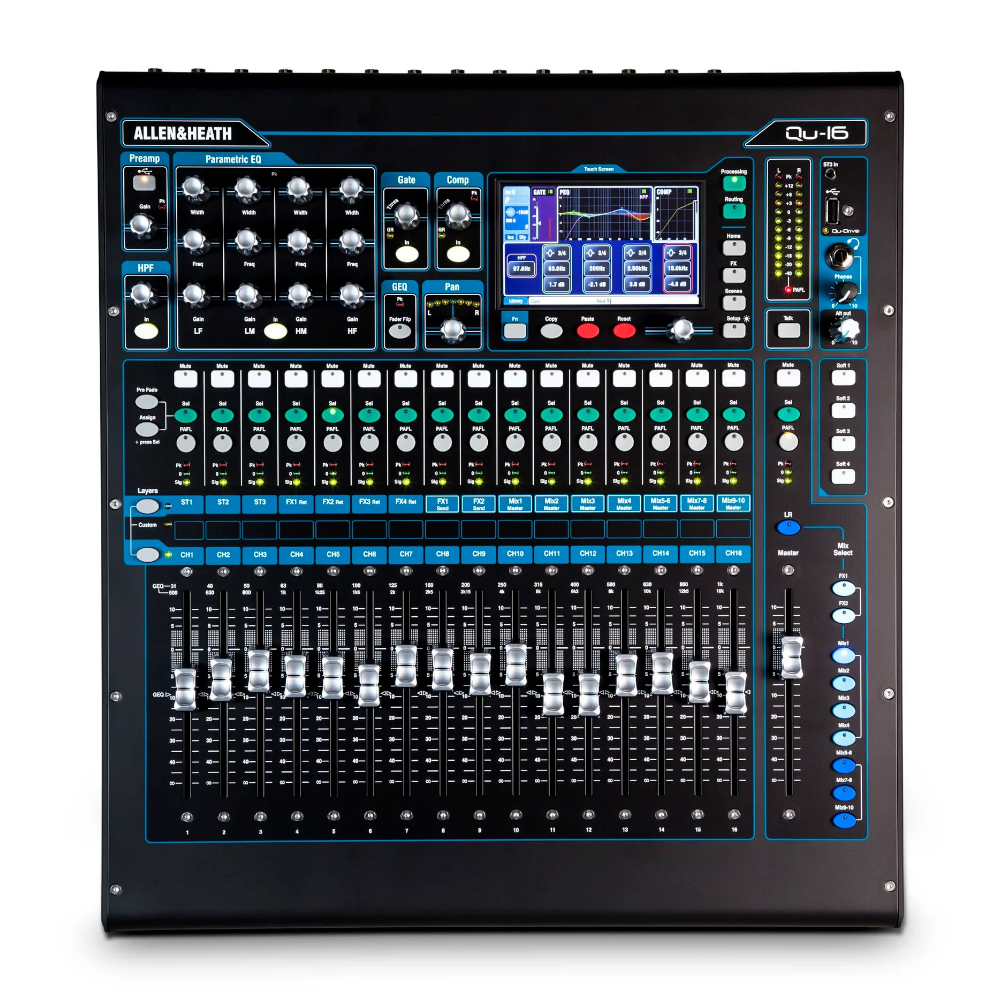

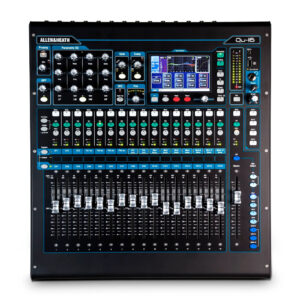

Qu-16 takes compact digital mixing to a new level with innovative design and exceptional functionality combining to create a superb professional mixing experience. Bristling with all the features you’d expect from a top of the range digital console and incorporating technologies pioneered on our GLD and iLive digital mixing systems, Qu-16 has the power and pedigree to deliver class-leading audio performance. Whether you’re switching from analogue or updating your digital desk, it’s time to experience the new digital with Qu-16.

Features
16 Mono Inputs (TRS + XLR)
3 Stereo Inputs (TRS)
4 Stereo FX Returns
16 Busses
12 Mix Outputs (LR, Mono Mix 1-4, Stereo Mix 1-3)
4 FX Engines
AES Digital Out
19? Rack Mountable
Moving Faders
Recallable AnaLOGIQTM Preamps
Qu-Drive direct Multitrack Recording / Playback on USB drives
800?480 Touchscreen
iLive FX Library
dSNAKE Remote Audio Port
Compatible with ME Personal Mixing System
Qu-Pad iPad App
USB Audio Streaming
DAW MIDI Control
4 Mute Groups
4 DCA Groups
Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
Insert, 1/3 octave GEQ, compressor and delay on Main LR and Mono Mix outputs
Insert, 4-band PEQ, compressor and delay on Stereo Mix outputs
Built-in Signal Generator
RTA with Peak Band indication

Specifications:
Type: Digital
Channels: 16
Inputs:
Mic Preamps: 16 x XLR
Line: 16 x TRS, 2 x TRS (Stereo)
Digital: 1 x D-Snake
Other: 1 x 1/4″ (Stereo), 1 x XLR (Talkback)

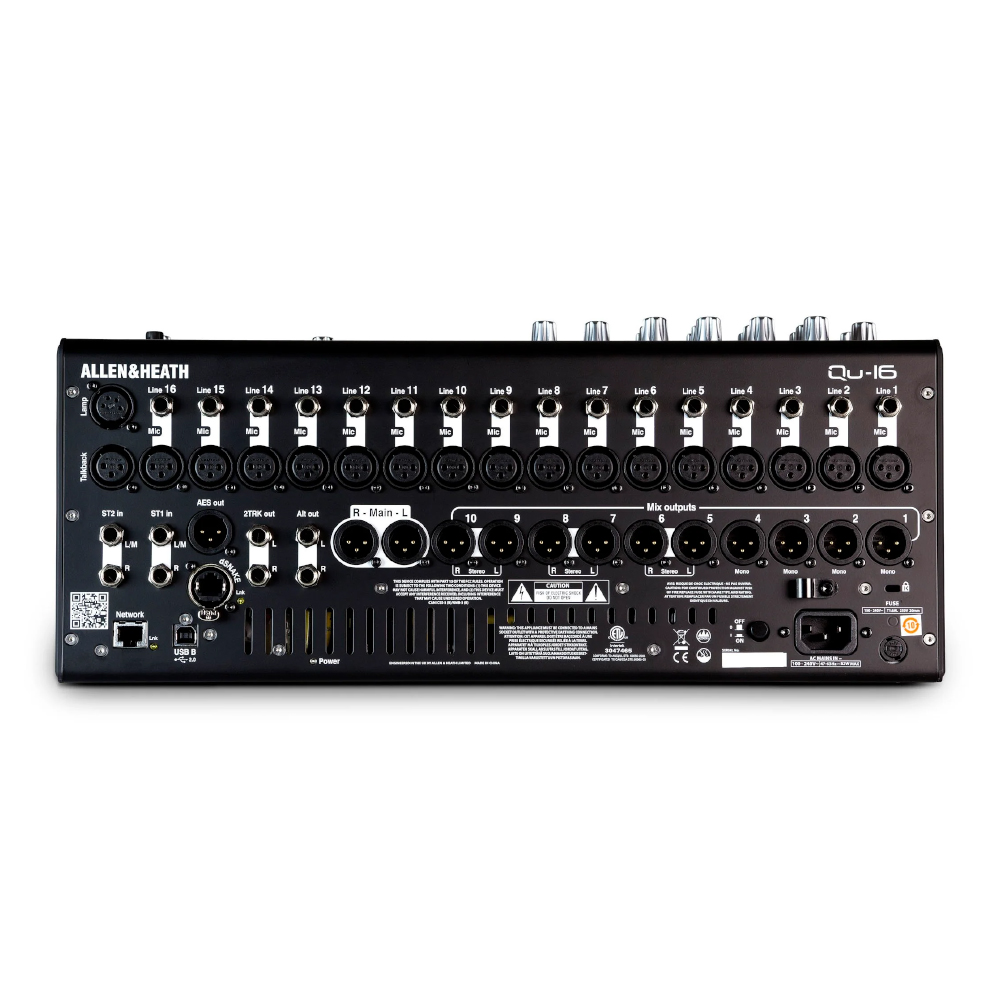

Outputs:
Main: 2 x XLR, 10 x XLR (Mix)
Direct: 2 x Stereo (TRS)
Digital: 1 x AES/EBU (XLR)
Headphones: 1 x 1/4″
Send/Return I/O: 4 x Stereo
Data I/O: Ethernet, USB
EQ Bands: 4-band
Busses/Groups: 16 x Bus
Faders: 17 x 100mm (Motorized)
Channel Inserts: Yes
Effects: Yes
Talkback: Yes
DAW Control: Yes
Computer connectivity: 1 x USB
Rackmountable: Yes
Dimensions (rackmounted): 190 mm x 472 mm x 483 mm
Dimensions (deskmounted): 186 mm x 500 mm x 440 mm
Weight: 10 Kg
